Customized Driveshaft Telemetry

Customized Torque Monitoring

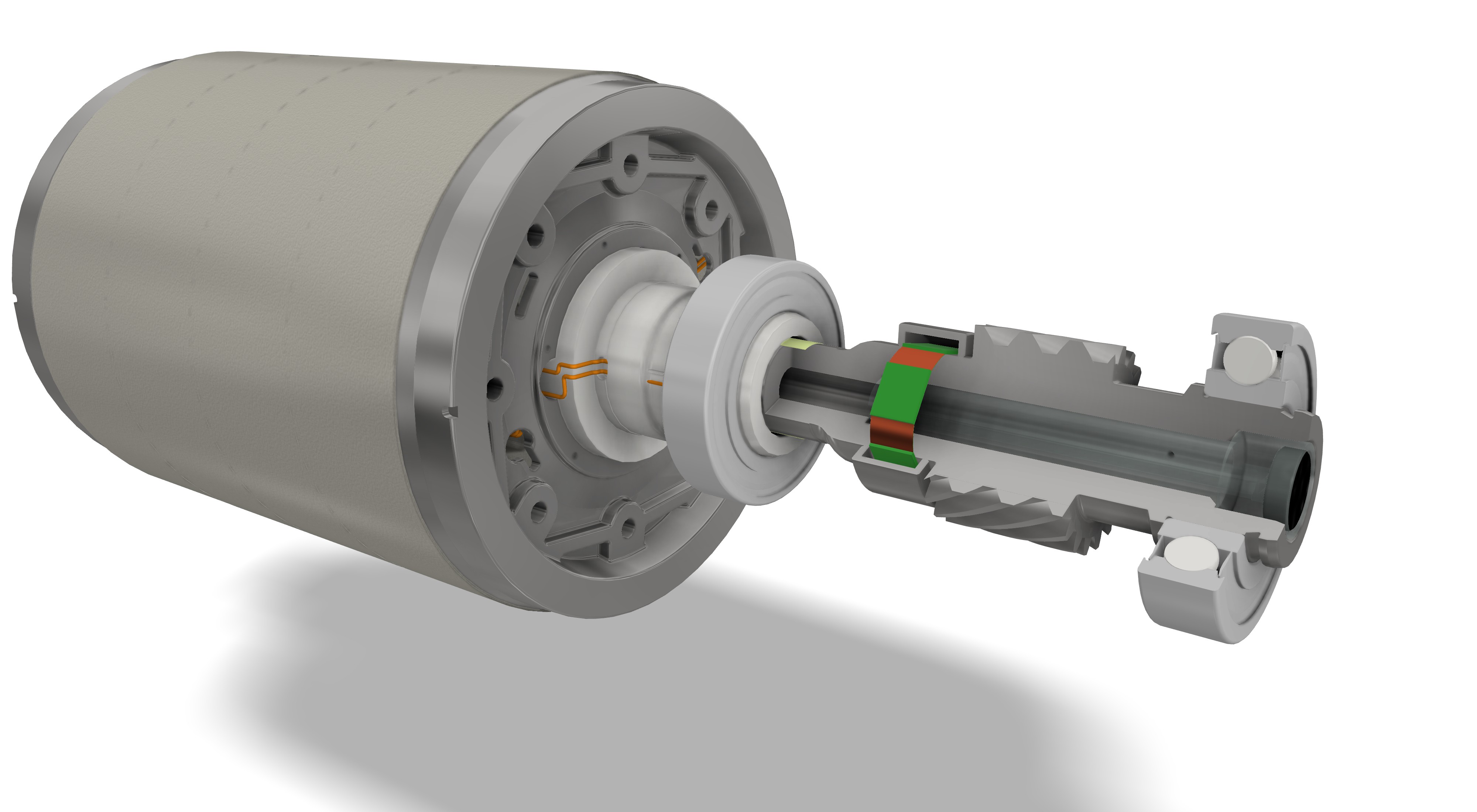

Our advanced Driveshaft Telemetry Systems allow precise torque measurements on vehicle driveshafts, providing essential data for performance optimization and system verification. Engineered for seamless integration, this system ensures minimal interference with vehicle dynamics while capturing critical metrics. By offering accurate torque insights, it supports the development of high-performance with enhanced efficiency and reliability, contributing to the development of vehicles with ever-increasing range.

Capabilities

Torque Precision

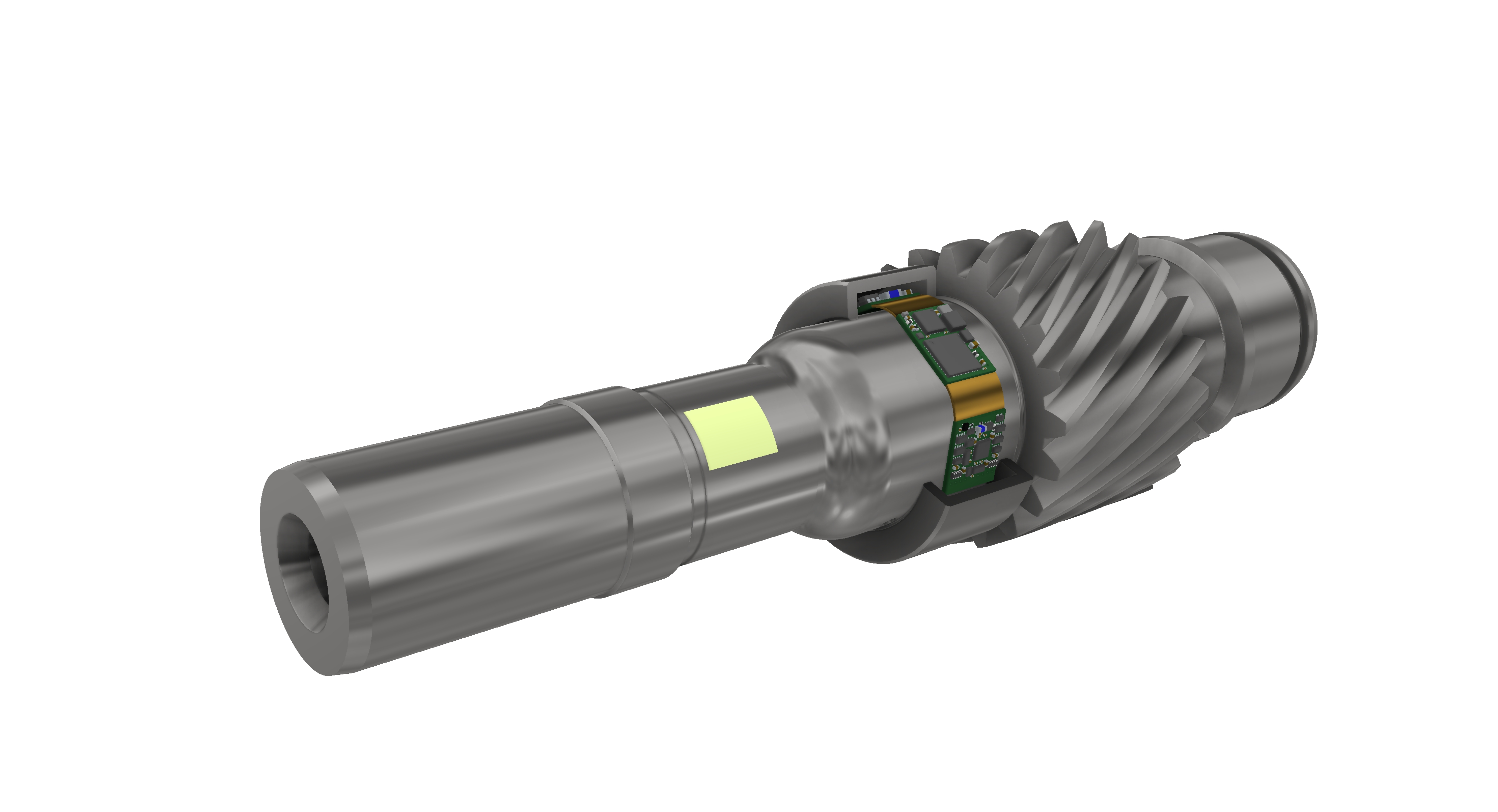

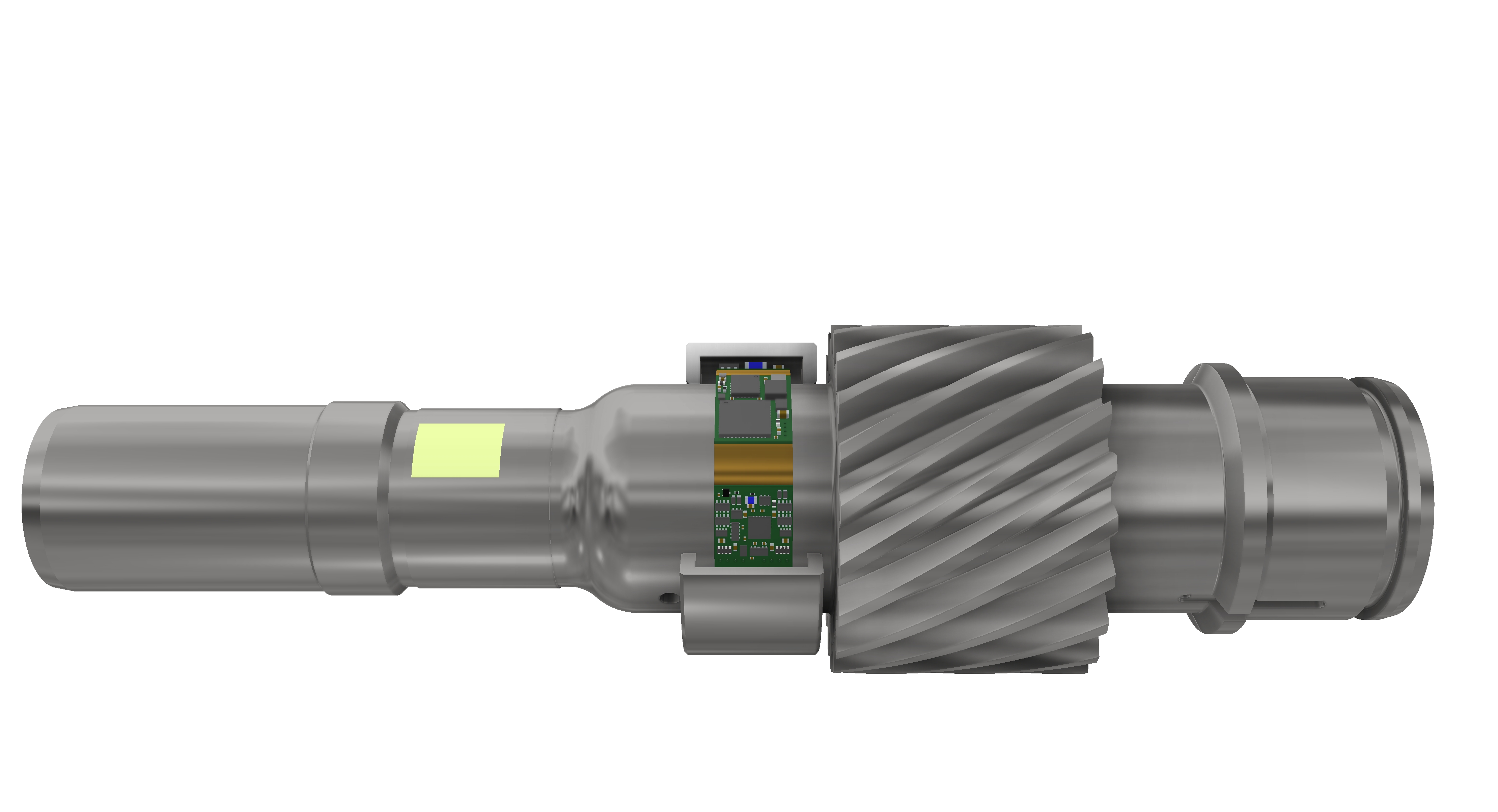

Measure torque directly on driveshafts to assess mechanical performance such as power transfer and efficiency.

Non-Invasive Integration

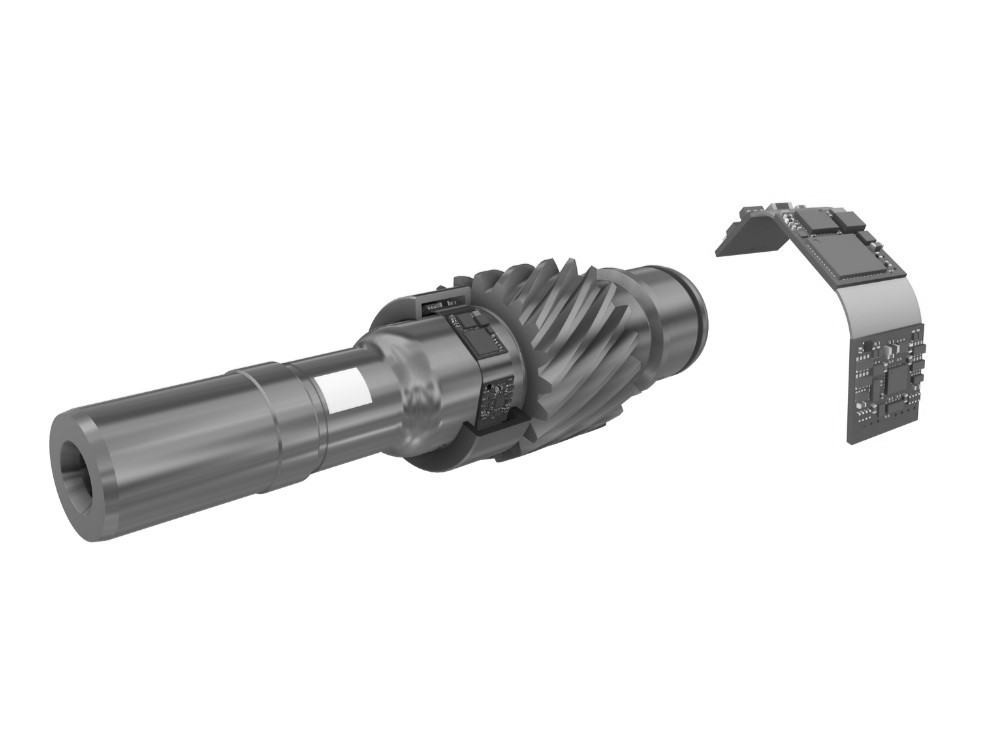

Designed to fit effortlessly onto existing driveshaft configurations, ensuring compatibility without compromising functionality.

Performance Optimization

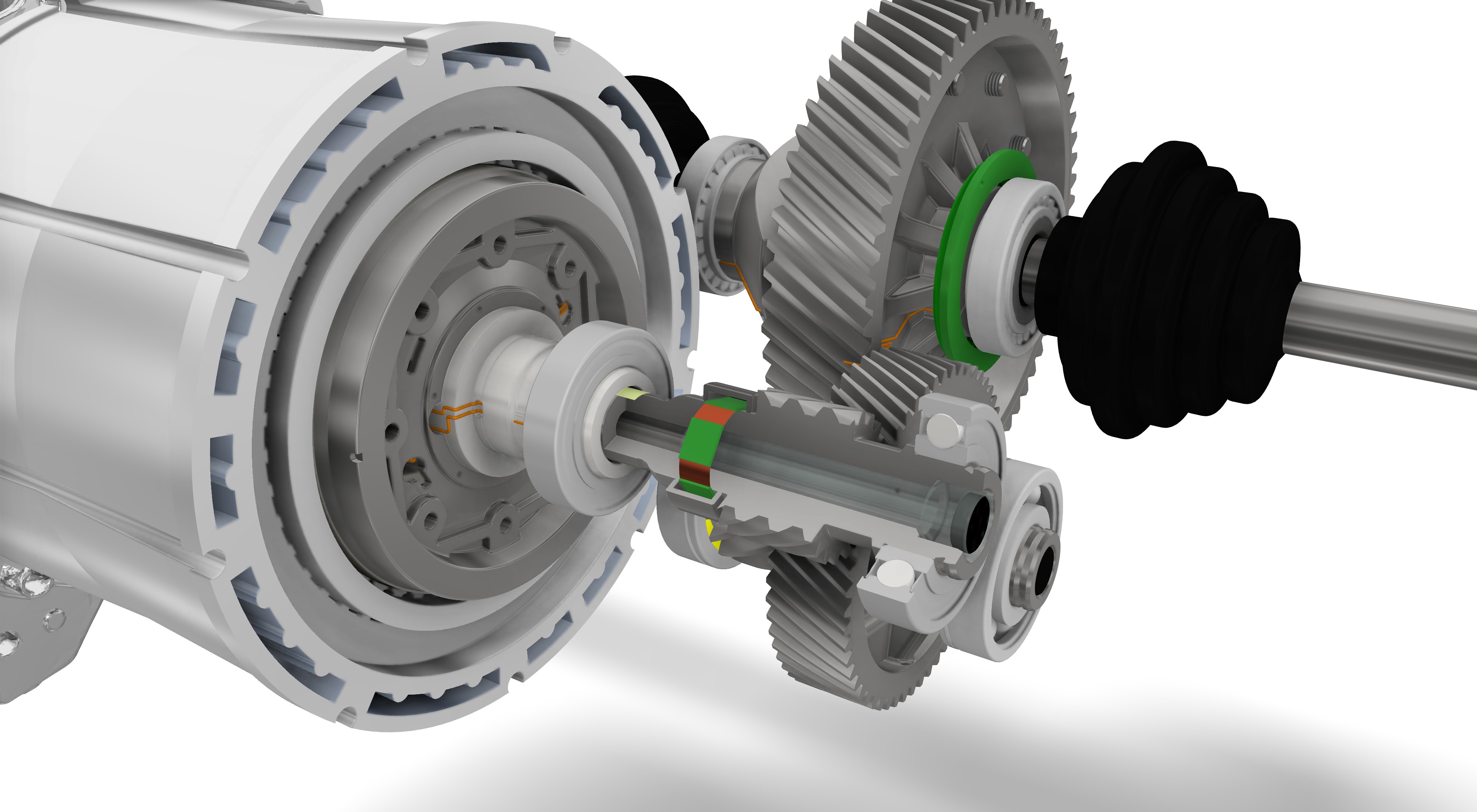

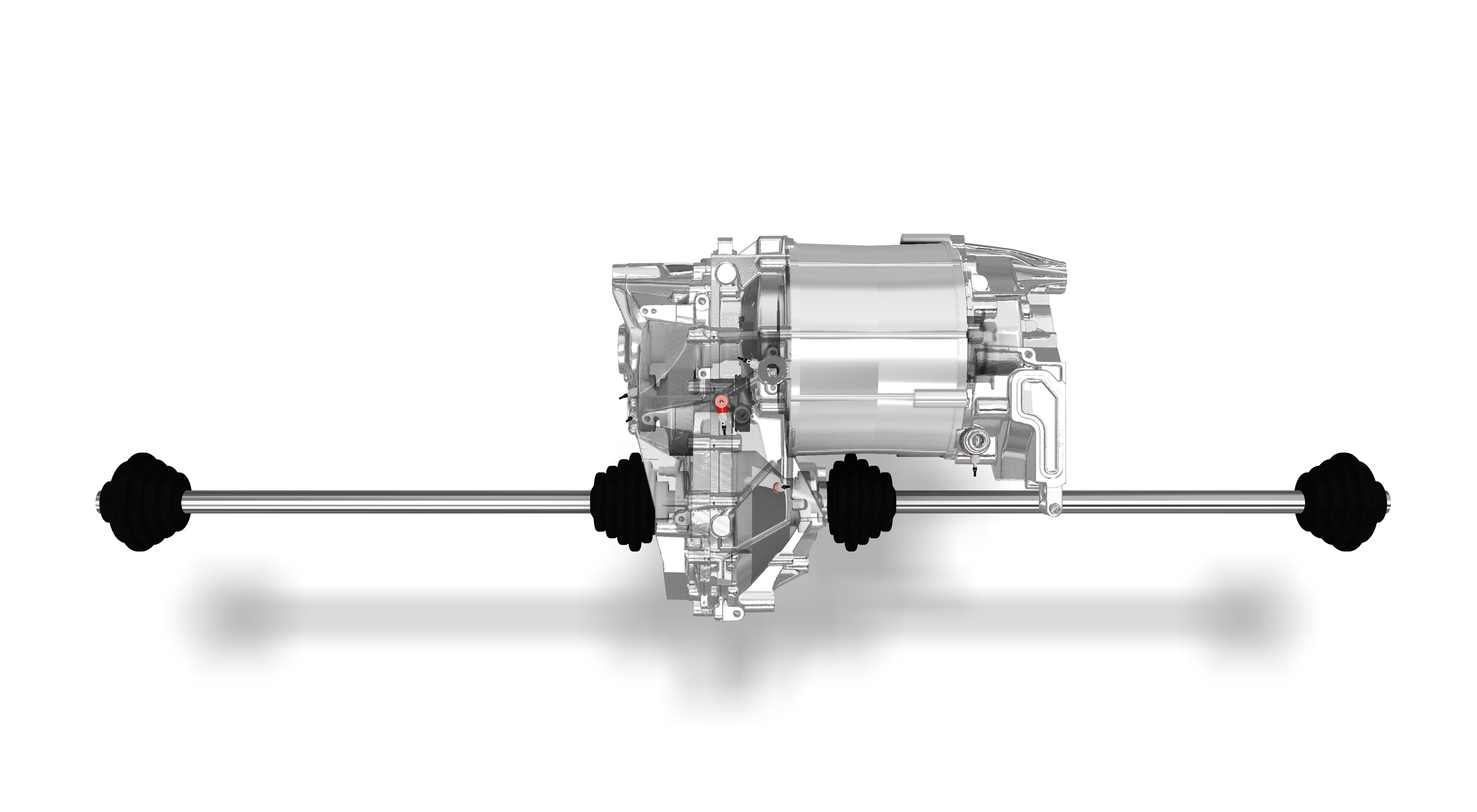

Characterize the efficiency throughout the power train to attribute losses to specific components within your system.

Discover the power of precision torque monitoring. Contact us today to learn how our Driveshaft Telemetry Systems can aid your development process.

Kontakt

Specifications


Number of inputs	4 (2 + 2)
Supported sensors	Thermocouples all types Strain Gauges (350 Ohm)
Supported configurations	4x Thermocouple 2 x Strain Gauge + 2 x Thermocouple
Sampling rate	10 Hz (temperature), 1 kHz (torque)
Operating temperature range (electronics)	-40 °F to 302 °F
Accuracy	±2,7 °F (temperature), +0.1% torque
Telemetry communication interface	digital, contactless
Power supply	Wireless power transfer (WPT)
Data interface	CAN Bus through Receiverbox
Allowed rotational rate	Tested up to 30.000 RPM
Achievable airgaps (antenna separation)	1mm to 140mm (sideshaft)
Antenna configuration	specific to customer geometry

Components

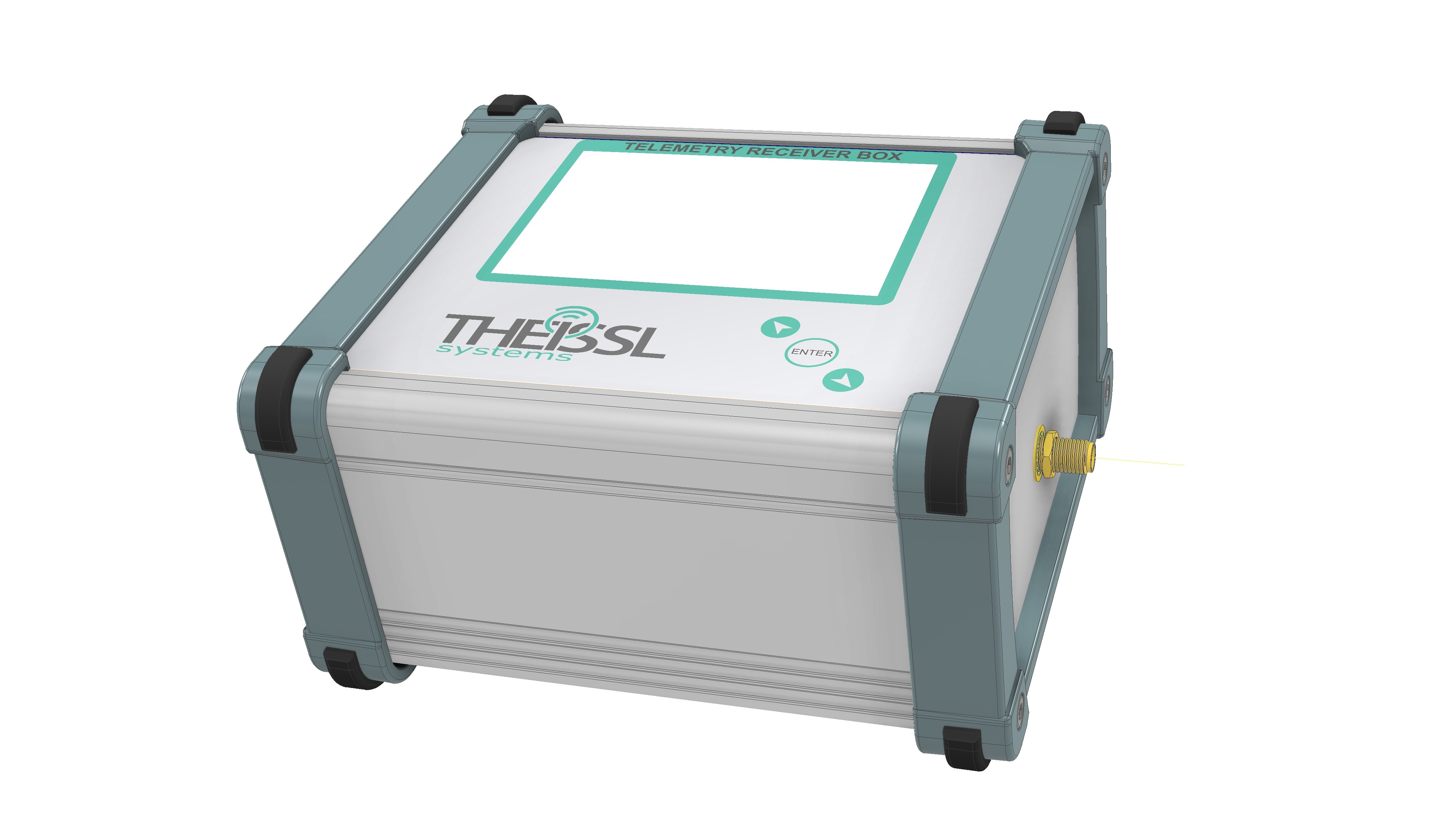

Receiverbox

Our universal Receiverbox serves as the central communication hub for any telemetry system, delivering both wireless power to the telemetry and a high-speed data interface in one compact device.

Telemetry data is received, processed, and then transmitted via a standard CAN bus interface, ensuring compatibility with a wide range of systems and applications. For added convenience, real-time data monitoring is available directly on the built-in device display, allowing for immediate feedback and system diagnostics without the need for external tools.

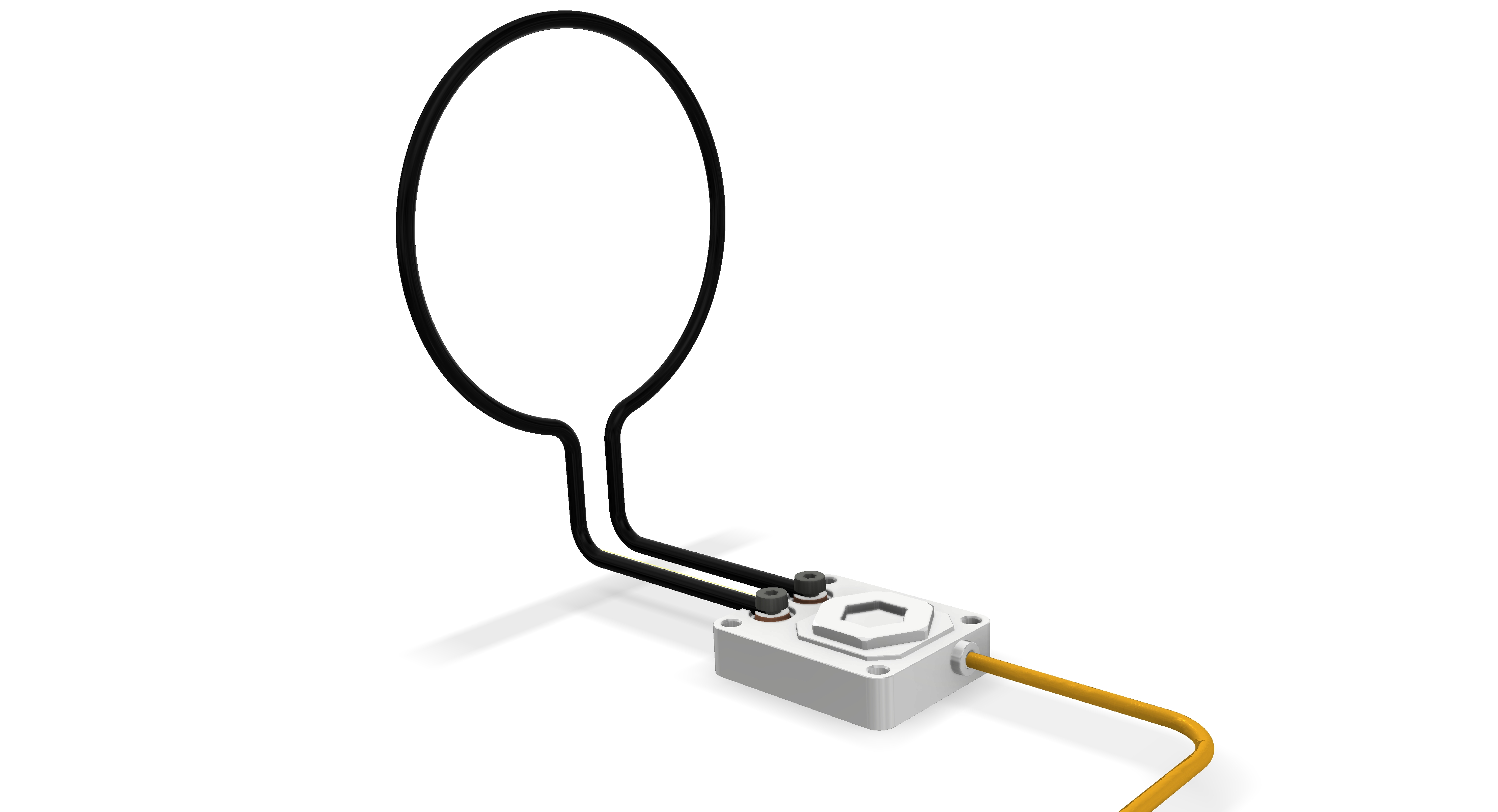

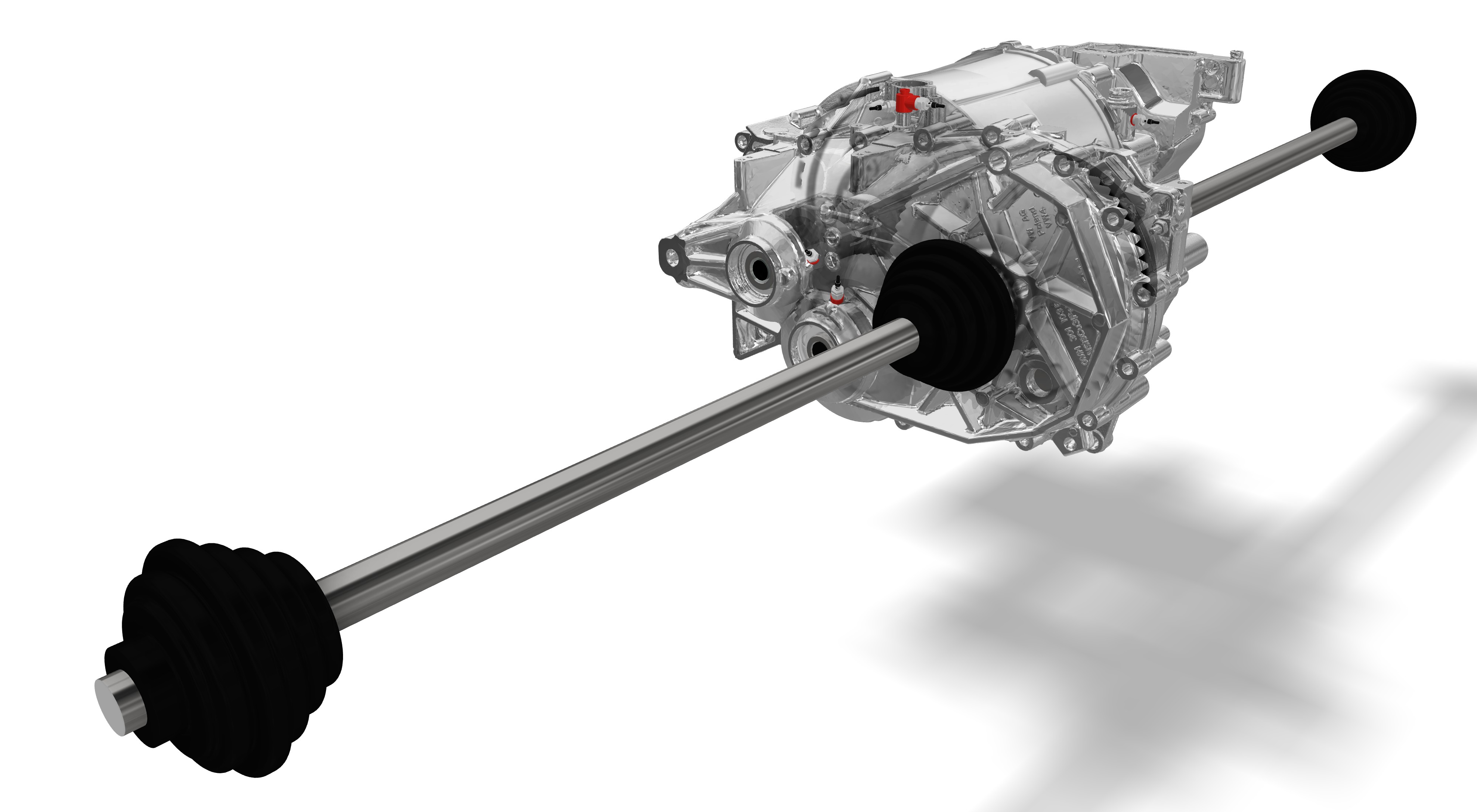

Sideshaft Antenna

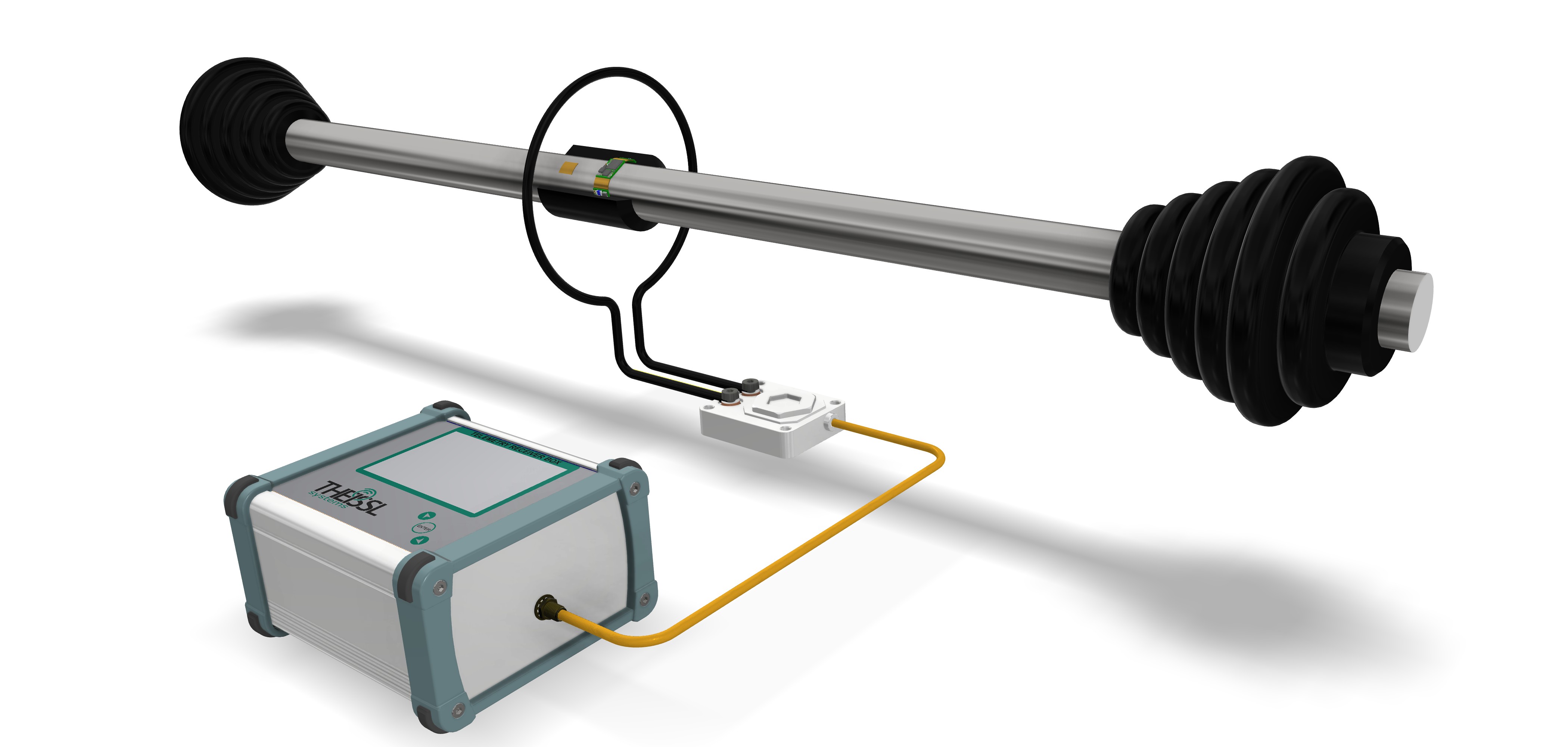

Developed specifically for sideshaft torque measurement, our Sideshaft Antenna offers a highly flexible and robust solution for integration into test vehicles. Thanks to its customizable geometry and with support for air gaps of up to 150 mm, the antenna can be precisely tailored to fit complex installation environments, enabling seamless integration under even under harsh conditions.
