Customized Rotor Telemetry
Customized Rotor Temperature Monitoring

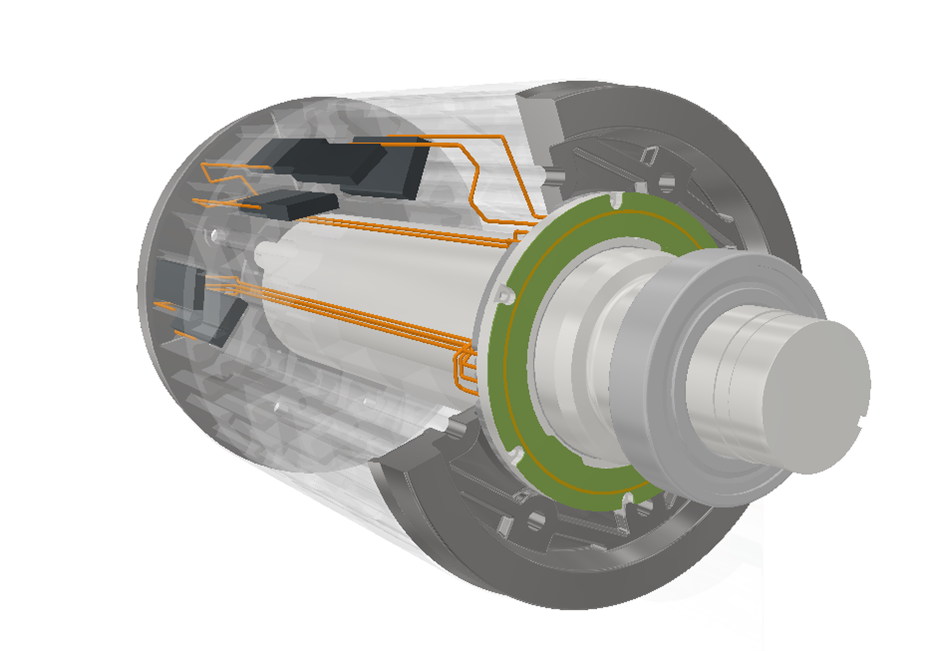

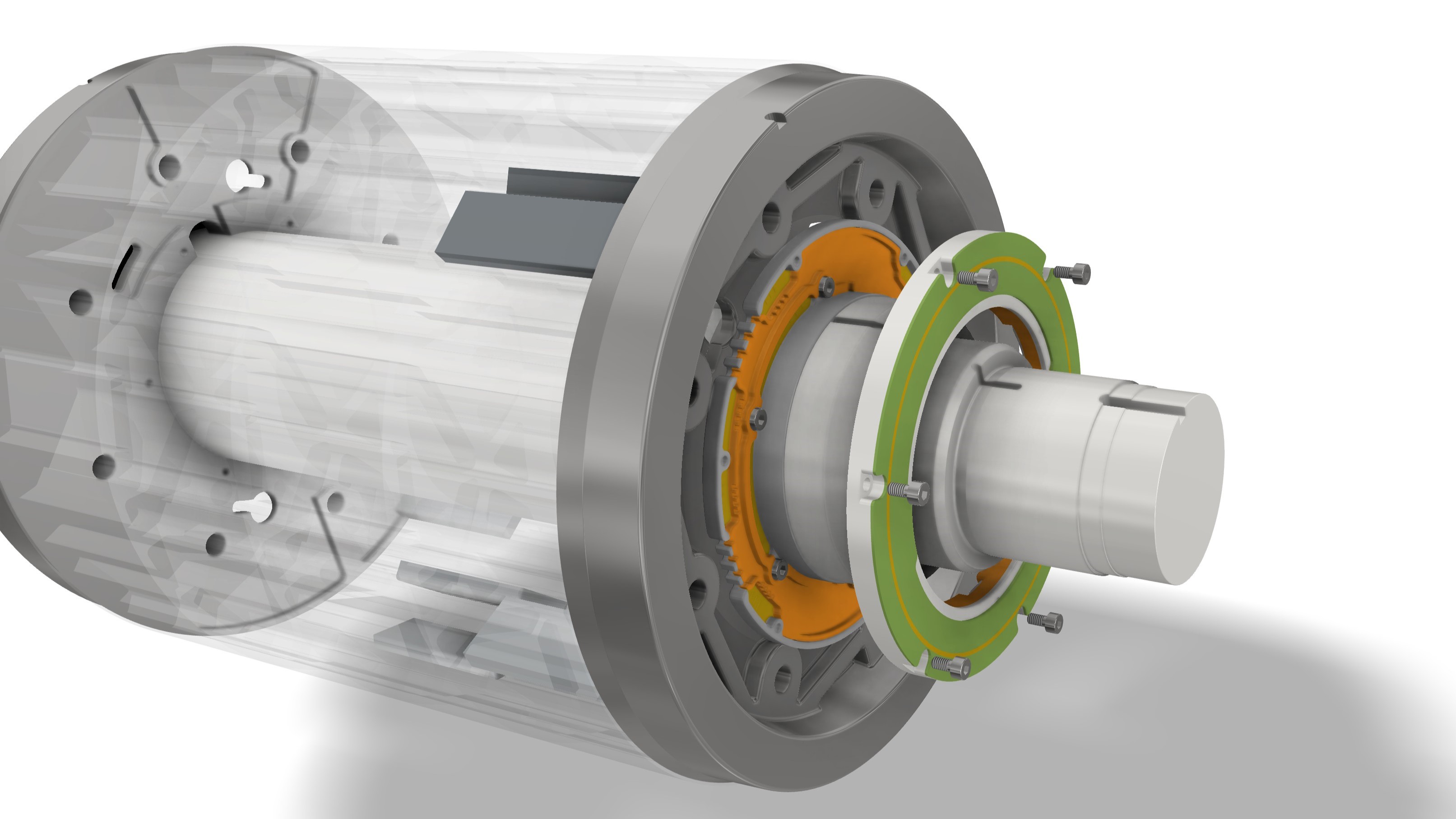

Our cutting-edge Rotor Telemetries are engineered for precise temperature monitoring of rotor systems in industrial and automotive applications. These advanced solutions deliver real-time, high-accuracy temperature data of electric drives, empowering customers to optimize performance, enhance durability, and ensure operational safety in even the most demanding environments.
Capabilities
Capabilities
Minimally Invasive Temperature Monitoring

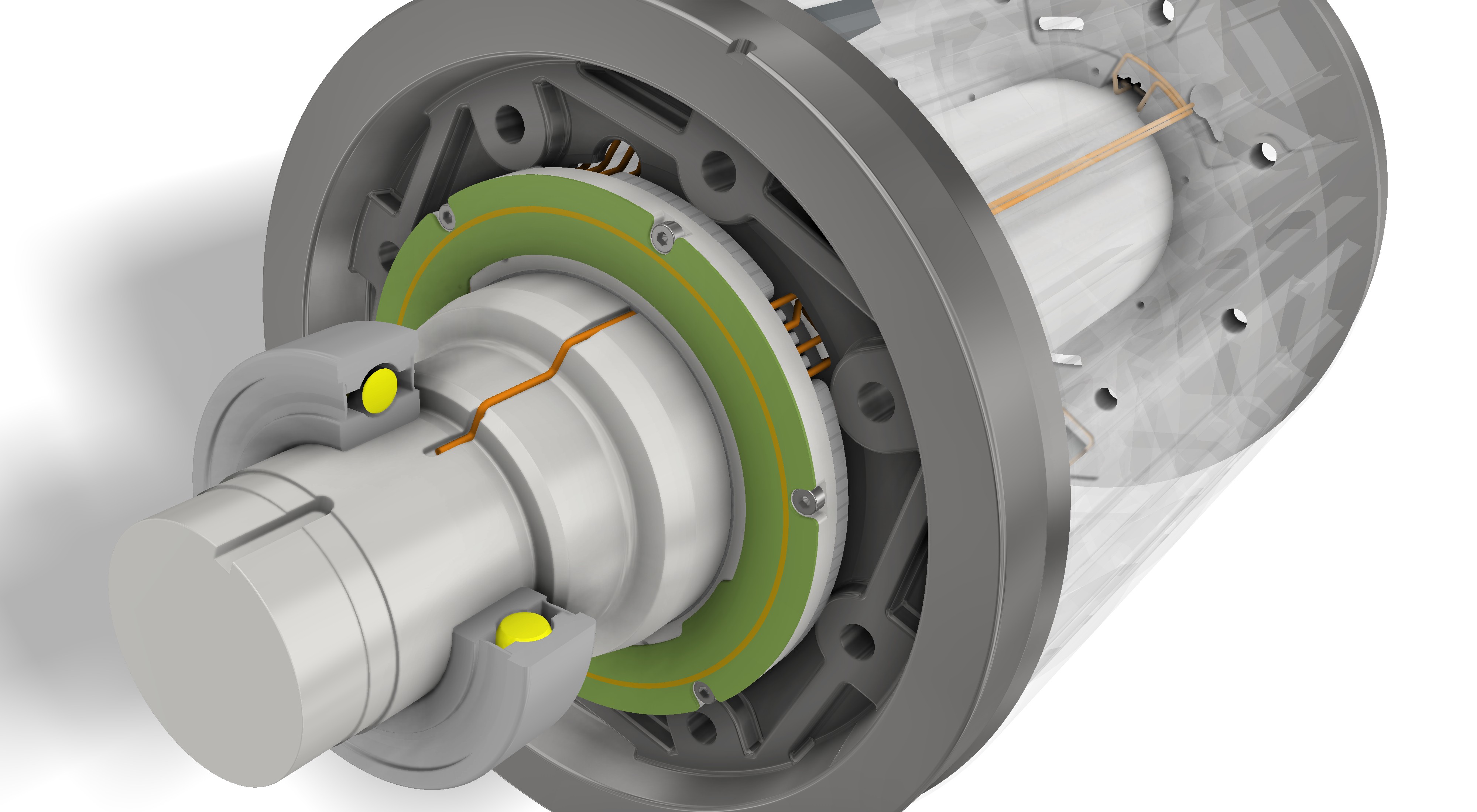

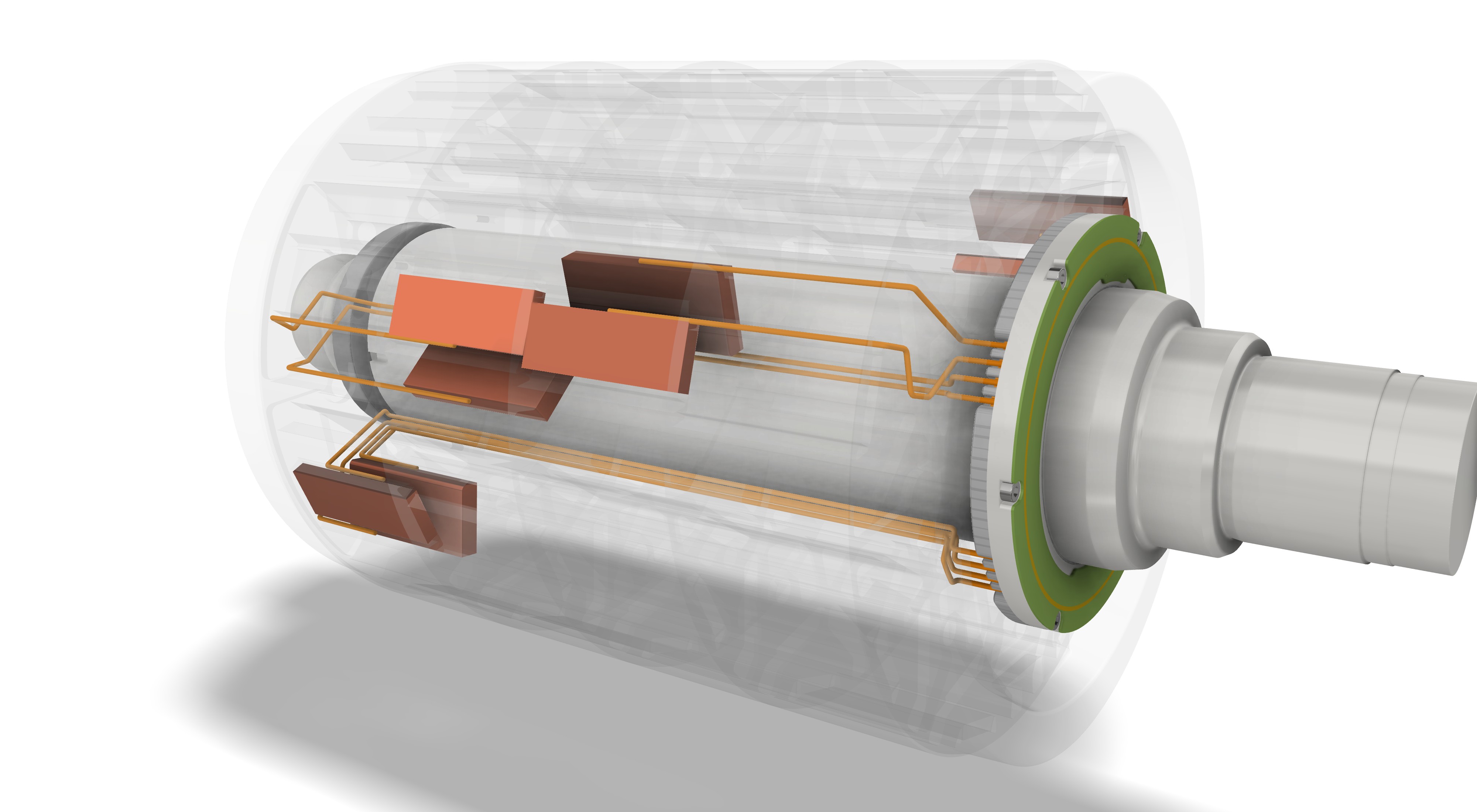

Measure critical rotor temperatures, such as magnets, stacks, or bearings, without compromising performance
Tailored to Your Needs
Our telemetry systems fit effortlessly into any customer setup without requiring design compromises for precise measurements.
High Accuracy Across Extreme Conditions
Engineered for durability, our telemetry systems deliver robust performance under extreme conditions, from high-vibration settings to intense thermal cycles
Robust Against Electromagnetic Interference
A digital communication interface between the telemetry unit and the Receiverbox ensures high resistance to EMI, delivering reliable performance even in electrically noisy environments
Cost-Efficient and Reusable
The modular design, featuring a functional separation between telemetry and sensor terminal, allows the telemetry unit to be reused across multiple projects
Discover the power of precision temperature monitoring. Contact us today to learn how our Rotor Telemetry Systems can aid your development process.
Specifications
Specifications
Number of inputs | 8, 16, expandable to 32 |
Supported sensors | Thermocouples of all types |
Sampling rate | 10 Hz |
Operating temperature range (electronics) | -40 °F to 302 °F |
Accuracy | ±2,7 °F |
Telemetry communication interface | digital, contactless |
Power supply | wireless power transfer (WPT) |
Data interface | CAN Bus through Receiverbox |
Allowed rotor speed | Tested up to 30.000 RPM |
Achievable airgaps (antenna seperation) | 1 mm to 20 mm |
Antenna configuration | specific to customer geometry |
Components
Components
Sensor Terminal

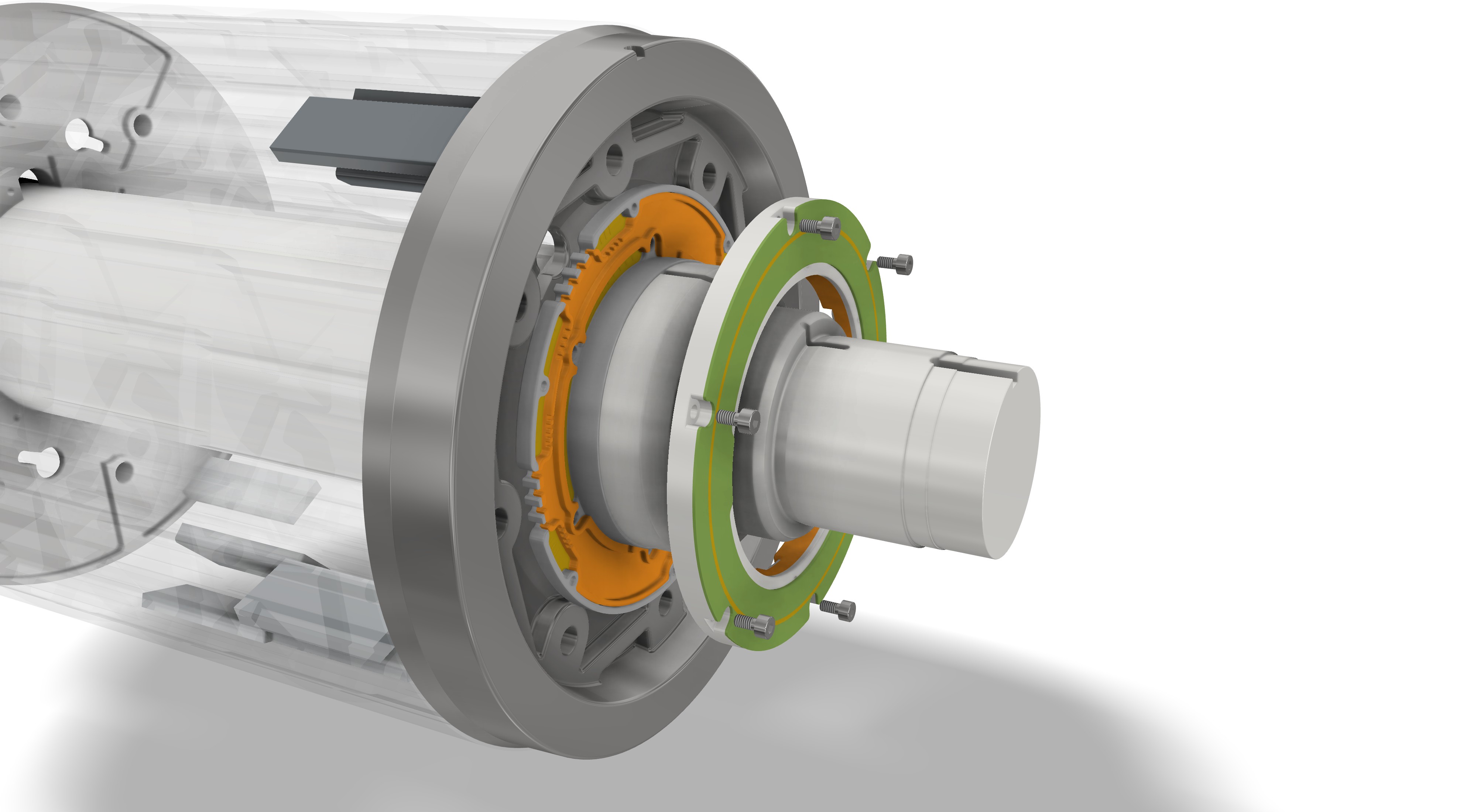

The Sensor Terminal is part of the customized rotor telemetry system, designed to increase flexibility and reduce overall system costs. Instead of connecting thermocouples directly to the telemetry unit, they are routed through the Sensor Terminal. This separation saves time during the assembly of the entire telemetry system and enables the telemetry unit to be reused across different test setups or projects without rewiring, offering a practical and cost-effective solution for repeated use.
Receiverbox
Our universal Receiverbox serves as the central communication hub for any telemetry system, delivering both wireless power to the telemetry and a high-speed data interface in one compact device.
Telemetry data is received, processed, and then transmitted via a standard CAN bus interface, ensuring compatibility with a wide range of systems and applications. For added convenience, real-time data monitoring is available directly on the built-in device display, allowing for immediate feedback and system diagnostics without the need for external tools.

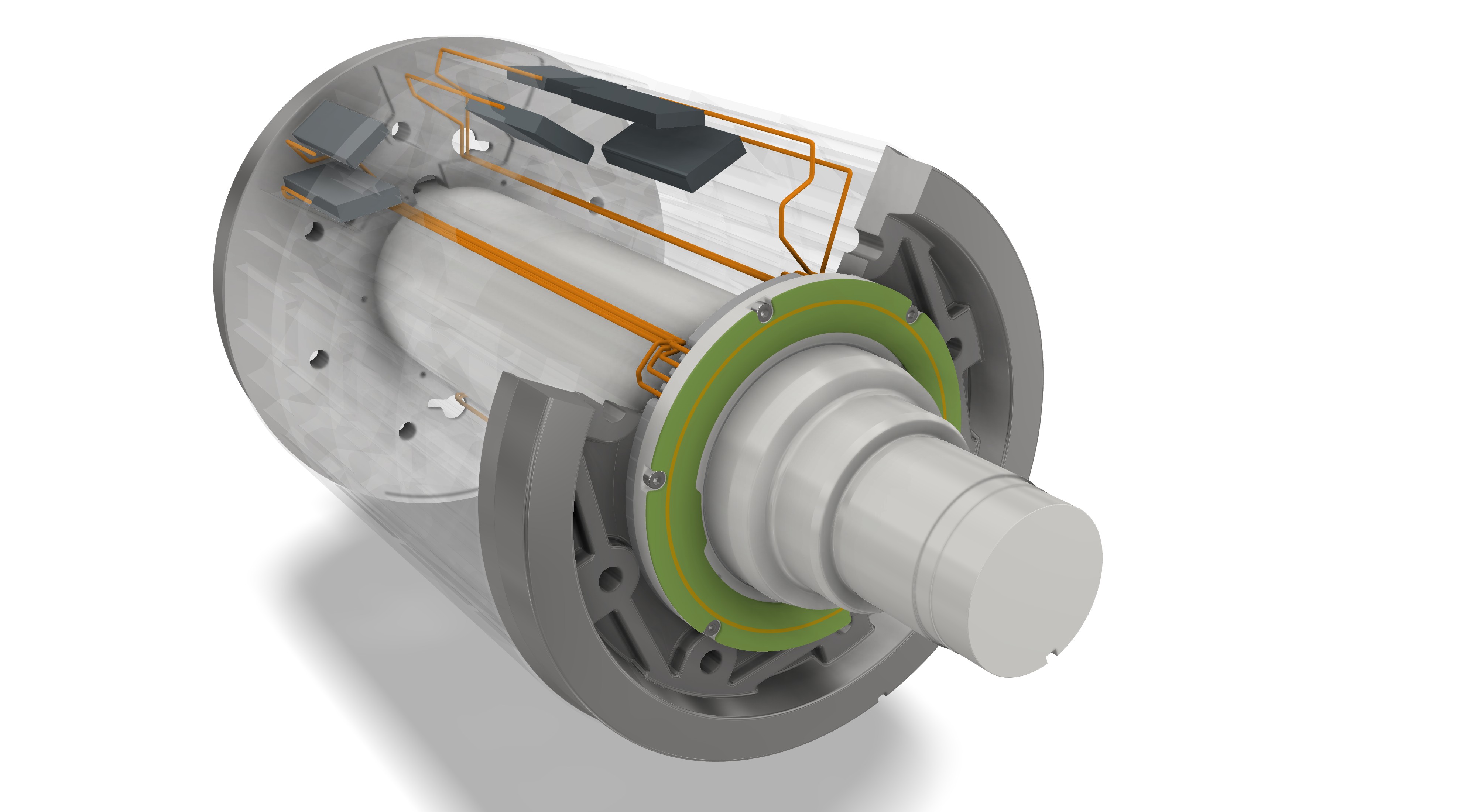

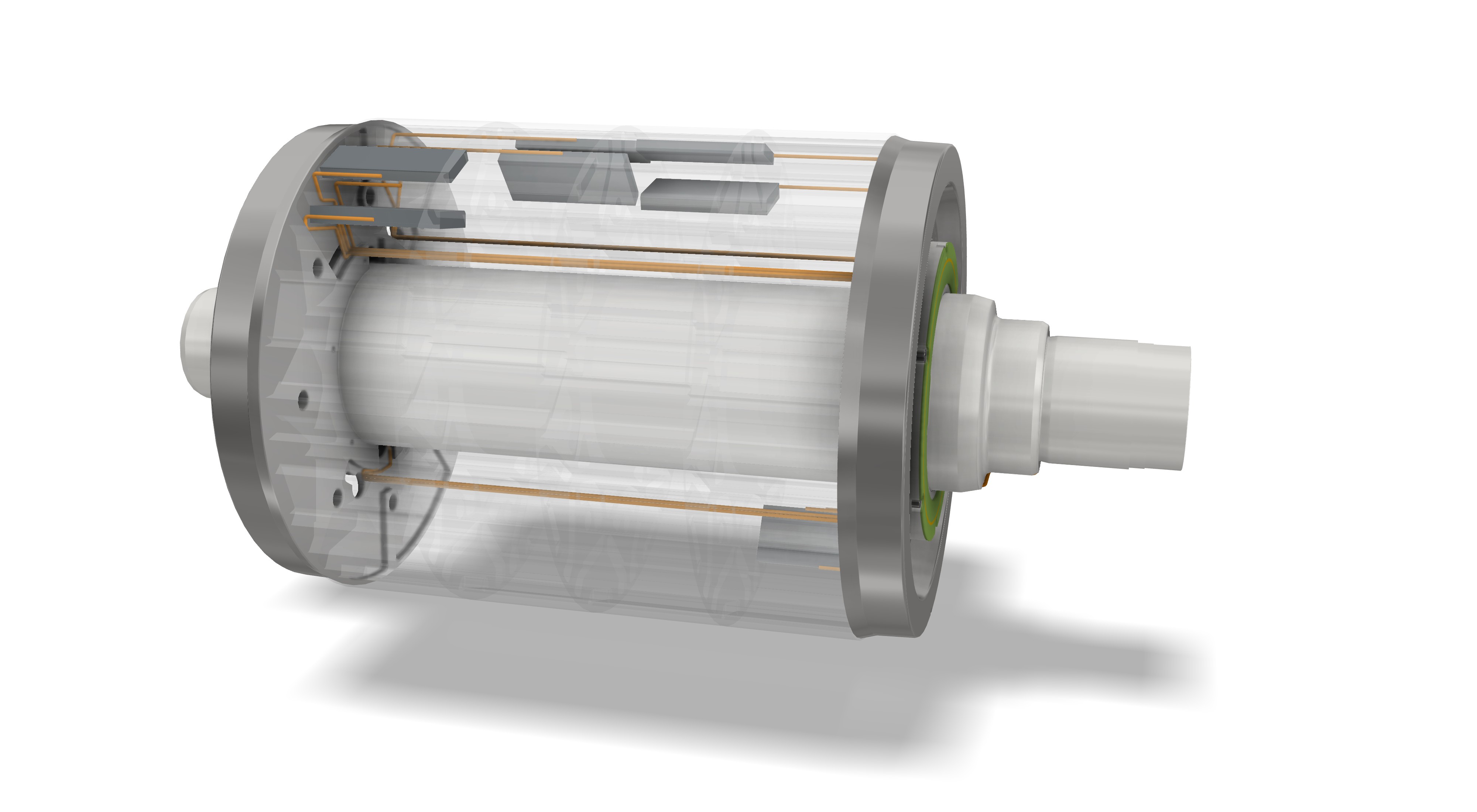

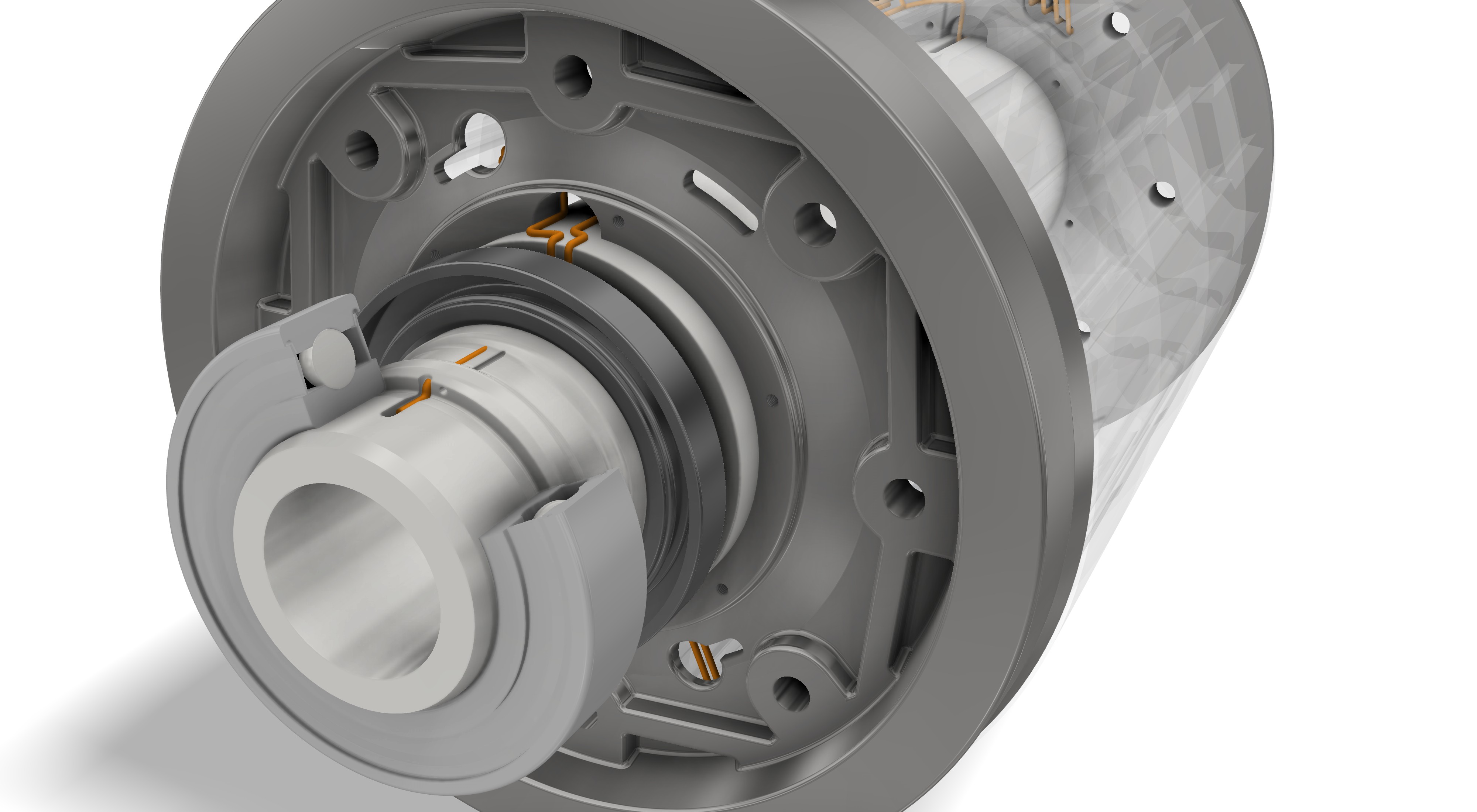

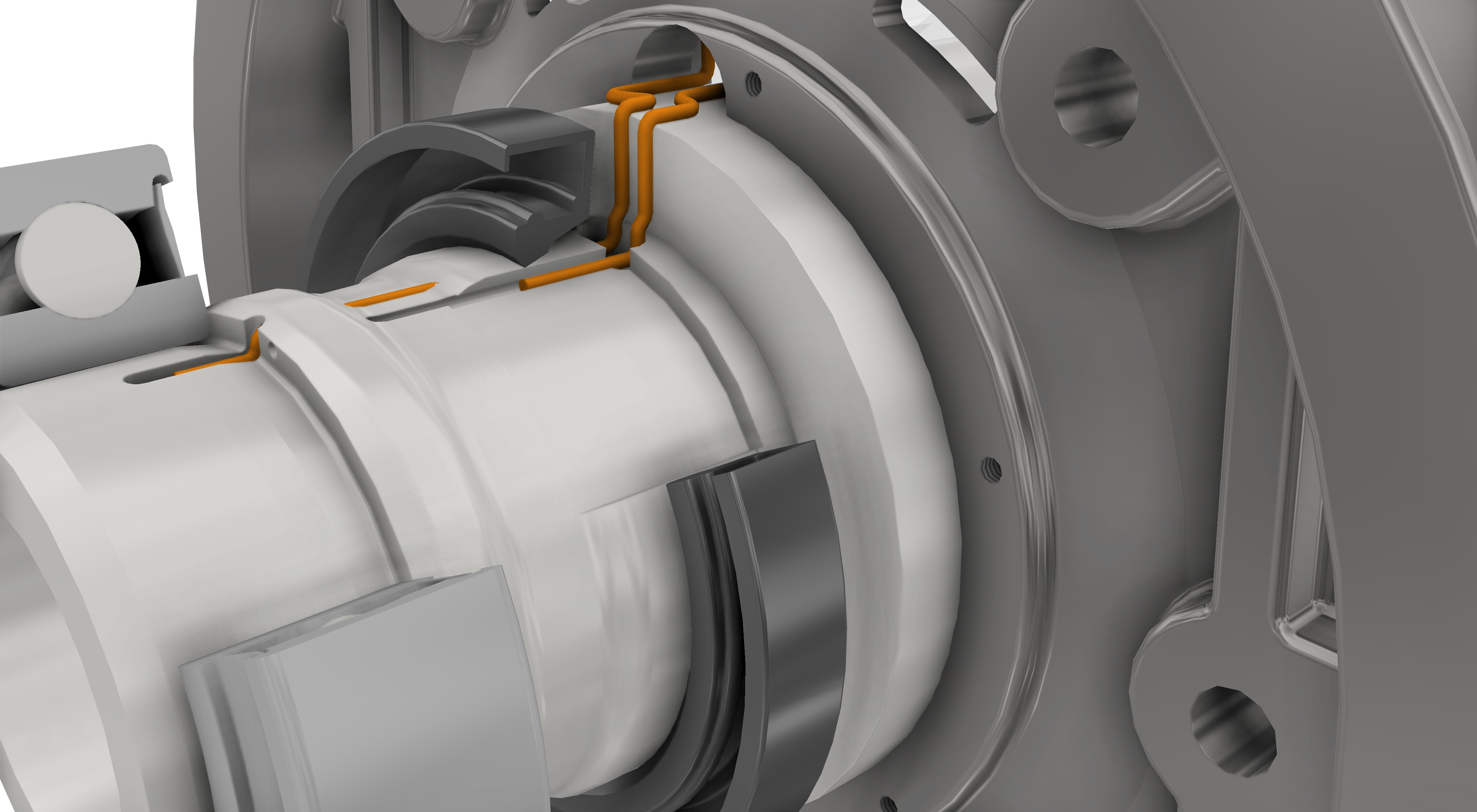

Product Photos
Product
